Wandanbaugehäuse
in Stahlblech
Serie MAS
- Wandanbaugehäuse aus Stahlblech für verschiedene Anwendungen
- Mit 1 Tür
- In vielen Größen gebrauchsfertig erhältlich
- Schutzart IP66
- Vermeidung von unnötigen Ausfallzeiten
Wandanbaugehäuse
mit 1 Tür
In vielen Größen
erhältlich
Schutzart IP66
CAD-Daten (2D/3D)
auf Anfrage verfügbar
Gerne stehen wir Ihnen
für Ihre Fragen zur Verfügung!
Ihr MBI-Team
Telefon: +49 7251 30 20 408
Telefax: +49 7251 30 20 409
E-Mail: info@mbi-gmbh.de
Technische Daten der Wandanbaugehäuse Serie MAS
Mit Montageplatte
| Artikelnummer | Höhe (mm) |
Breite (mm) |
Tiefe (mm) |
Plattengröße (mm) |
Max. Montagetiefe (mm) |
Schlösser |
| MAS0202015R5 | 200mm | 200mm | 155mm | 170 x 150mm | 137mm | 1 |
| MAS0252015R5 | 250mm | 200mm | 155mm | 220 x 150mm | 137mm | 1 |
| MAS0252515R5 | 250mm | 250mm | 155mm | 220 x 200mm | 137mm | 1 |
| MAS0302515R5 | 300mm | 250mm | 155mm | 270 x 200mm | 137mm | 1 |
| MAS0302521R5 | 300mm | 250mm | 210mm | 270 x 200mm | 192mm | 1 |
| MAS0303015R5 | 300mm | 300mm | 155mm | 270 x 250mm | 137mm | 1 |
| MAS0303021R5 | 300mm | 300mm | 210mm | 270 x 250mm | 192mm | 1 |
| MAS0304021R5 | 300mm | 400mm | 210mm | 270 x 330mm | 192mm | 1 |
| MAS0352515R5 | 350mm | 250mm | 155mm | 320 x 200mm | 137mm | 1 |
| MAS0403015R5 | 400mm | 300mm | 155mm | 370 x 250mm | 137mm | 1 |
| MAS0403021R5 | 400mm | 300mm | 210mm | 370 x 250mm | 192mm | 1 |
| MAS0404021R5 | 400mm | 400mm | 210mm | 370 x 350mm | 192mm | 1 |
| MAS0405021R5 | 400mm | 500mm | 210mm | 370 x 450mm | 192mm | 1 |
| MAS0406021R5 | 400mm | 600mm | 210mm | 370 x 550mm | 192mm | 1 |
| MAS0503021R5 | 500mm | 300mm | 210mm | 470 x 250mm | 192mm | 1 |
| MAS0504015R5 | 500mm | 400mm | 155mm | 470 x 350mm | 137mm | 1 |
| MAS0504021R5 | 500mm | 400mm | 210mm | 470 x 350mm | 192mm | 1 |
| MAS0504026R5 | 500mm | 400mm | 260mm | 470 x 350mm | 242mm | 1 |
| MAS0504030R5 | 500mm | 400mm | 300mm | 470 x 350mm | 282mm | 1 |
| MAS0505021R5 | 500mm | 500mm | 210mm | 470 x 450mm | 192mm | 1 |
| MAS0505030R5 | 500mm | 500mm | 300mm | 470 x 450mm | 282mm | 1 |
| MAS0604015R5 | 600mm | 400mm | 155mm | 570 x 350mm | 137mm | 2 |
| MAS0604021R5 | 600mm | 400mm | 210mm | 570 x 350mm | 192mm | 2 |
| MAS0604026R5 | 600mm | 400mm | 260mm | 570 x 350mm | 242mm | 2 |
| MAS0604030R5 | 600mm | 400mm | 300mm | 570 x 350mm | 282mm | 2 |
| MAS0605015R5 | 600mm | 500mm | 155mm | 570 x 450mm | 137mm | 2 |
| MAS0605021R5 | 600mm | 500mm | 210mm | 570 x 450mm | 192mm | 2 |
| MAS0605026R5 | 600mm | 500mm | 260mm | 570 x 450mm | 242mm | 2 |
| MAS0605030R5 | 600mm | 500mm | 300mm | 570 x 450mm | 282mm | 2 |
| MAS0606021R5 | 600mm | 600mm | 210mm | 570 x 550mm | 192mm | 2 |
| MAS0606030R5 | 600mm | 600mm | 300mm | 570 x 550mm | 282mm | 2 |
| MAS0606040R5 | 600mm | 600mm | 400mm | 570 x 550mm | 382mm | 2 |
| MAS0608030R5 | 600mm | 800mm | 300mm | 570 x 750mm | 282mm | 2 |
| MAS0705021R5 | 700mm | 500mm | 210mm | 670 x 450mm | 192mm | 2 |
| MAS0705026R5 | 700mm | 500mm | 260mm | 670 x 450mm | 242mm | 2 |
| MAS0804030R5 | 800mm | 400mm | 300mm | 770 x 350mm | 282mm | 2 |
| MAS0806021R5 | 800mm | 600mm | 210mm | 770 x 550mm | 192mm | 2 |
| MAS0806026R5 | 800mm | 600mm | 260mm | 770 x 550mm | 242mm | 2 |
| MAS0806030R5 | 800mm | 600mm | 300mm | 770 x 550mm | 282mm | 2 |
| MAS0806040R5 | 800mm | 600mm | 400mm | 770 x 550mm | 382mm | 2 |
| MAS0808021R5 | 800mm | 800mm | 210mm | 770 x 750mm | 192mm | 2 |
| MAS0808030R5 | 800mm | 800mm | 300mm | 770 x 750mm | 282mm | 2 |
| MAS0808040R5 | 800mm | 800mm | 400mm | 770 x 750mm | 382mm | 2 |
| MAS1006026R5 | 1000mm | 600mm | 260mm | 970 x 550mm | 242mm | 1 |
| MAS1006030R5 | 1000mm | 600mm | 300mm | 970 x 550mm | 282mm | 1 |
| MAS1008026R5 | 1000mm | 800mm | 260mm | 970 x 750mm | 242mm | 1 |
| MAS1008030R5 | 1000mm | 800mm | 300mm | 970 x 750mm | 282mm | 1 |
| MAS1008040R5 | 1000mm | 800mm | 400mm | 970 x 750mm | 382mm | 1 |
| MAS1206030R5 | 1200mm | 600mm | 300mm | 1170 x 550mm | 282mm | 1 |
| MAS1208030R5 | 1200mm | 800mm | 300mm | 1170 x 750mm | 282mm | 1 |
| MAS1208040R5 | 1200mm | 800mm | 400mm | 1170 x 750mm | 382mm | 1 |
Ohne Montageplatte
| Artikelnummer | Höhe (mm) |
Breite (mm) |
Tiefe (mm) |
Schlösser |
| MAS0202015PER5 | 200mm | 200mm | 155mm | 1 |
| MAS0252015PER5 | 250mm | 200mm | 155mm | 1 |
| MAS0252515PER5 | 250mm | 250mm | 155mm | 1 |
| MAS0302515PER5 | 300mm | 250mm | 155mm | 1 |
| MAS0302521PER5 | 300mm | 250mm | 210mm | 1 |
| MAS0303015PER5 | 300mm | 300mm | 155mm | 1 |
| MAS0303021PER5 | 300mm | 300mm | 210mm | 1 |
| MAS0304021PER5 | 300mm | 400mm | 210mm | 1 |
| MAS0352515PER5 | 350mm | 250mm | 155mm | 1 |
| MAS0403015PER5 | 400mm | 300mm | 155mm | 1 |
| MAS0403021PER5 | 400mm | 300mm | 210mm | 1 |
| MAS0404021PER5 | 400mm | 400mm | 210mm | 1 |
| MAS0405021PER5 | 400mm | 500mm | 210mm | 1 |
| MAS0406021PER5 | 400mm | 600mm | 210mm | 1 |
| MAS0503021PER5 | 500mm | 300mm | 210mm | 1 |
| MAS0504015PER5 | 500mm | 400mm | 155mm | 1 |
| MAS0504021PER5 | 500mm | 400mm | 210mm | 1 |
| MAS0504026PER5 | 500mm | 400mm | 260mm | 1 |
| MAS0504030PER5 | 500mm | 400mm | 300mm | 1 |
| MAS0505021PER5 | 500mm | 500mm | 210mm | 1 |
| MAS0505030PER5 | 500mm | 500mm | 300mm | 1 |
| MAS0604015PER5 | 600mm | 400mm | 155mm | 2 |
| MAS0604021PER5 | 600mm | 400mm | 210mm | 2 |
| MAS0604026PER5 | 600mm | 400mm | 260mm | 2 |
| MAS0604030PER5 | 600mm | 400mm | 300mm | 2 |
| MAS0605015PER5 | 600mm | 500mm | 155mm | 2 |
| MAS0605021PER5 | 600mm | 500mm | 210mm | 2 |
| MAS0605026PER5 | 600mm | 500mm | 260mm | 2 |
| MAS0605030PER5 | 600mm | 500mm | 300mm | 2 |
| MAS0606021PER5 | 600mm | 600mm | 210mm | 2 |
| MAS0606030PER5 | 600mm | 600mm | 300mm | 2 |
| MAS0606040PER5 | 600mm | 600mm | 400mm | 2 |
| MAS0608030PER5 | 600mm | 800mm | 300mm | 2 |
| MAS0705021PER5 | 700mm | 500mm | 210mm | 2 |
| MAS0705026PER5 | 700mm | 500mm | 260mm | 2 |
| MAS0804030PER5 | 800mm | 400mm | 300mm | 2 |
| MAS0806021PER5 | 800mm | 600mm | 210mm | 2 |
| MAS0806026PER5 | 800mm | 600mm | 260mm | 2 |
| MAS0806030PER5 | 800mm | 600mm | 300mm | 2 |
| MAS0806040PER5 | 800mm | 600mm | 400mm | 2 |
| MAS0808021PER5 | 800mm | 800mm | 210mm | 2 |
| MAS0808030PER5 | 800mm | 800mm | 300mm | 2 |
| MAS0808040PER5 | 800mm | 800mm | 400mm | 2 |
| MAS1206030PER5 | 1200mm | 600mm | 300mm | 1 |
| MAS1208030PER5 | 1200mm | 800mm | 300mm | 1 |
| MAS1208040PER5 | 1200mm | 800mm | 400mm | 1 |

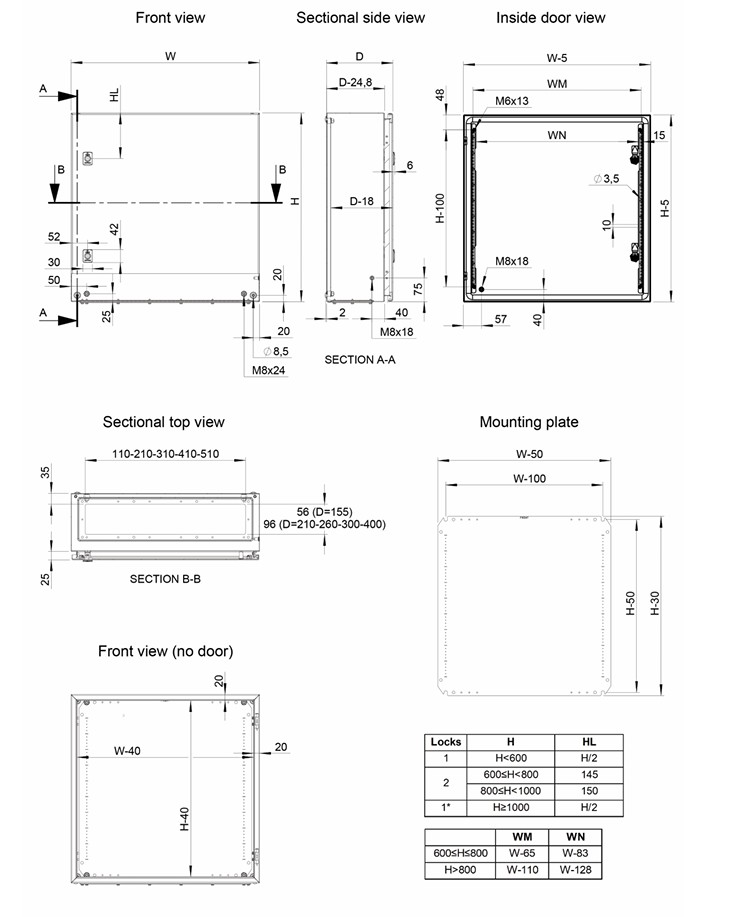

Abmessungen der Wandanbaugehäuse Serie MAS
